Products --> Candy Plant --> Bar Line




Item:

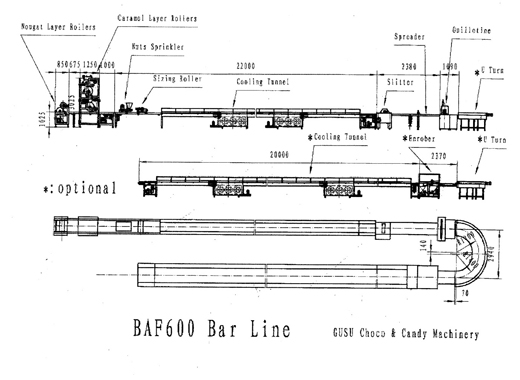

Candy&Cereal Compound Bar Automatic Rolling Forming & Cutting Line
Item Number:
BAF600,600mm width rolls, 54 meters long (including 21 meters coating machine of enrober & cooling tunnel)
Capacity:
1.8-2.8 MT / 8 hours shift
Total motors; 30 KW
including:
1)Nougat layer forming roller
2)Caramel layer forming rollers
3)Nuts sprinkler
4)Leveling sheeter sizing roller
5)Cooling tunnel
6)Longitudinal cutters, Splitter
7)Crosswise separator, spreader
8)Guillotine
9) U turn *
10)Enrober *
11)Cooling Tunnel *
*: optional


Remarks:
a) 1) & 2) need circumstance of 162, humidity <60%
6) & 8) need circumstance of 162, humidity <55%
b) Somebody need insert Syrup Sprayer after sizing roller
c) 1),2),4)three cylinder need a cooling system to provide -16 cooling fluid .
so, need to provide this cooling system.
d) Also, our cooking system CTJ-BMQ for nougat and caramel is optional.




Item:
CTJ-BMQ Cooking System for Bar Line
Item Number:
CTJ-BMQ
Include:
BQM250, vacuum film cooking Plant
including:
CTJ400,Cooking & Aerating Plant
HTG200, 200L Melting Pot
CCG500, 500L Storage Tank
JYG200,200L Storage Tank with pressure
JBQ200,Twin-screw Agitator,with nutlet hopper
Pumps,4 pcs
Comments:
Need to buy a 2 ton 8kg air pressure steam boiler in local market


Capacity: BQM250: 250kg/hour
CTJ400 : 250kg/hour

to supply bar line of 2000kg/8 hour shift
